Type: NPN (Negative-Positive-Negative) – This indicates the arrangement of semiconductor layers within the transistor. In an NPN transistor, a layer of P-type semiconductor is sandwiched between two layers of N-type semiconductor.

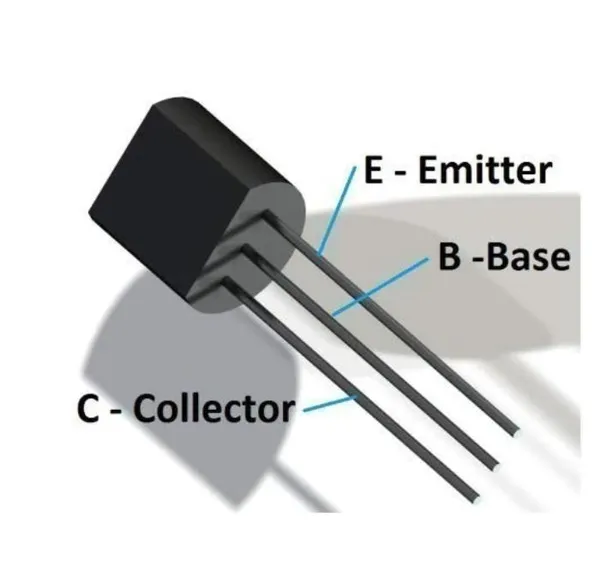

Polarity: The BC547 is used for amplification and switching of electronic signals. In an NPN transistor, when a small current flows into the base (B), a larger current flows between the collector (C) and emitter (E). The direction of current flow is from the collector to the emitter.
Applications:
Amplification: It is commonly used in small-signal amplification applications, such as in audio or radio frequency (RF) circuits.
Switching: The BC547 can also be used as a switch to control larger currents with a smaller input current.
Low Power: The BC547 is generally used for low-power applications and is not suitable for high-power circuits.
Temperature Range: It operates within a specified temperature range, and its characteristics may vary with temperature.
Common Variants: The BC547 is part of a family of transistors with similar characteristics, such as BC548 and BC549, which have slightly different electrical parameters.
